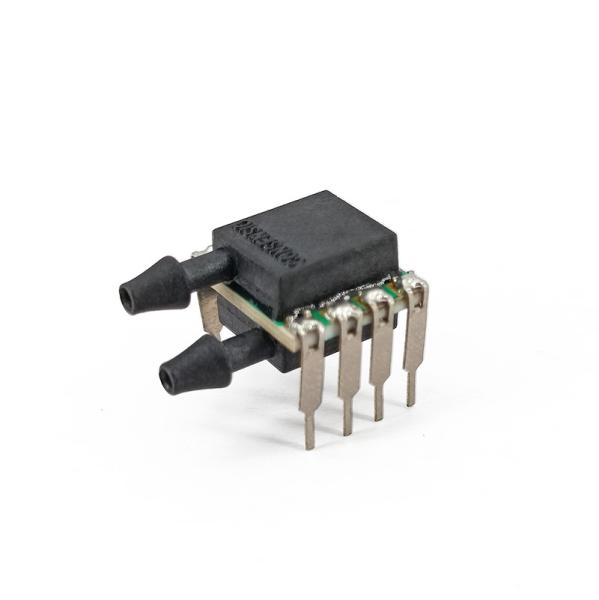

    Full Ceramic High Accuracy Digital Output Pressure Sensor 0-1000kPa

    Ask Lasest Price
    Brand Name : Consensic
    Model Number : CPS510
    Price : Offline contact or face-to-face discussion can be negotiated
    Payment Terms : L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
    Supply Ability : 999
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Full Ceramic High Accuracy Digital Output Pressure Sensor 0-1000kPa

    Digital Output Pressure Sensor CPS510 Full Ceramic Material Accuracy ± 2.5% Span, Working Temperature -20~85 ℃

    1. Product Overview
    The CPS510 Analog Output Series stands out as a highly compact, PCB-mounted pressure sensor. Its all-ceramic architecture not only endows it with remarkable corrosion resistance but also houses a pressure sensor and signal conditioning chip. Through a proprietary algorithm, it attains multi-order temperature compensation, generating precise and high-quality analog output signals directly related to the applied pressure.
    Noteworthy features are its cost-effectiveness combined with high performance, excellent linearity, repeatability, and outstanding stability and sensitivity. The onboard packaging simplifies integration for end-users.

    2. Product Characteristics
    All-ceramic architecture: Guarantees superior corrosion resistance.
    Enhanced sensitivity: Enables precise pressure detection.
    Superior stability and reliability: Retains performance consistently.
    Differential and gauge pressure variants: Offers diverse application possibilities.
    Operating temperature span: From -20 to 85°C.
    PCB onboard packaging: Streamlines integration process.
    Output alternatives: Both digital and analog outputs are provided.

    3. Product Applications
    Medical apparatus: Such as in diagnostic and treatment equipment.
    Fire protection safety mechanisms: Monitors pressure for enhanced safety.
    Gas flow meters / pressure switches: For industrial and domestic use.
    Consumer electronics and IoT: Suited for a wide range of smart gadgets.


    ParameterMinimumTypicalMaximumUnitRemarks
    Service Voltage1.855.5V
    Supply Current-1.7-mAAt 25°C
    Pressure Range0~1, 5, 10, 20, 40--kPaGauge or differential pressure
    Pressure Medium-Dry, non-corrosive gas--
    Overload Pressure--2x-
    Storage Temperature-40-+125°C
    Working Temperature-20-+85°C
    Output Voltage10%-90%V_SUPPLYOf service voltage
    Response Time-3-ms
    Stabilization Time-10-ms
    Accuracy-±1.5-%Span
    Long-Term Stability-±0.2-%FS
