CPG Gauge Pressure Module Minimum Pressure Bias 0.46-0.54V

Ask Lasest Price
Brand Name :	Consensic
Model Number :	CPG module
Price :	Offline contact or face-to-face discussion can be negotiated
Payment Terms :	L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability :	999
Delivery Time :	3-7 work days

Add to Cart

Product Details
Company Profile

CPG Gauge Pressure Module Minimum Pressure Bias 0.46-0.54V

Product characteristics

> Range: -100 kPa ~ 0 kPa, -40 kPa ~ 0 kPa, -10 kPa ~ 0 kPa,0 kPa ~ 10 kPa, 0 kPa ~ 40 kPa, 0 kPa ~ 100 kPa, etc. (the range can be customized)

> gage pressure

> High accuracy

> Modular pressure sensor

> high stability

> Good consistency

application area

> industrial computer

> body building apparatus

> Medical monitoring

> Automotive applications

> domestic appliance

Pressure parameters	least value	representative value	crest value	unit	remarks
range	-100~0,-40~0,-10~0, 0~10,0~40,0~100			Kpa
service voltage	3.3	5	5.5	V
working current		1.5		mA
Minimum pressure bias (1)	0.46	0.5	0.54	V	@25℃
Full-range output (2)	4.46	4.5	4.54	V	@25℃
Precision (25℃)	-1		1	%FS
Precision (0℃ to 50℃)	-2		2	%FS
response time		2		ms
stability	-1		1	%FS/yr
working temperature	-40		125	℃
Storage temperature	-55		150	℃

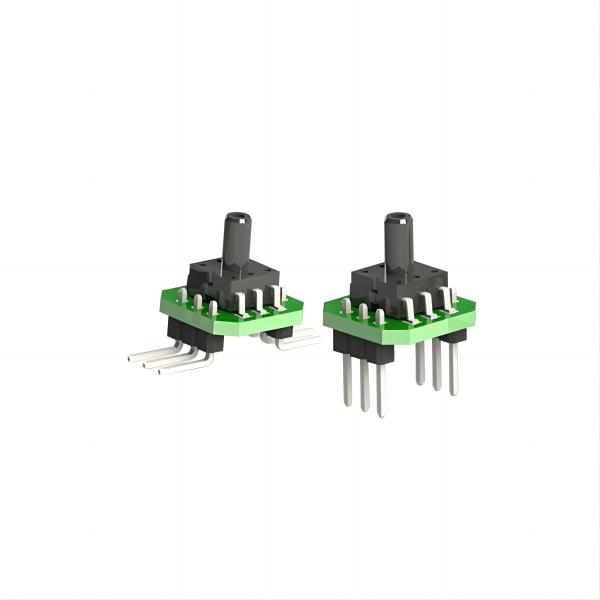

The CPG gauge pressure module

Product profile

The CPG series is a new pressure transmitter module that integrates a high-performance sensitive pressure sensor and a dedicated processing circuit.

PCB board, with high accuracy, high reliability advantages. The sensor processing circuit integrates the noise reduction processing modules to realize the strong anti-interference capability of the sensor. Meanwhile, the sensor integrates the high-precision temperature sensor and adopts a unique algorithm to supplement the sensor repay.
