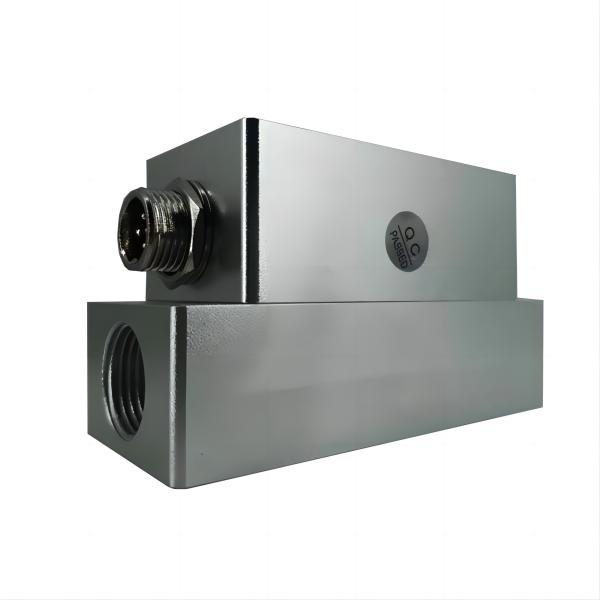

CMF9008 Nominal Nominal Diameter 8mm 20 30 40 50 80 100 150 200 300 SLPM

Ask Lasest Price
Brand Name :	Consensic
Model Number :	CMF9008
Certification :	PTC23091116101C-CN01
Price :	Offline conversation or face-to-face discussion
Payment Terms :	L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability :	999
Delivery Time :	3-7 work days

Add to Cart

Product Details
Company Profile

CMF9008 Nominal Nominal Diameter 8mm 20 30 40 50 80 100 150 200 300 SLPM

Product Overview: CMF9000 Nominal nominal diameter (mm)8 Maximum flow specification selection (SLPM)20,30,40,50,80,100,150,200,300

Support and Services

Quality Materials: CMF9000 Series flowmeters are made with premium materials for durability and performance.
Trusted Quality: Professional-grade quality ensures reliable operation.
Direct Supply: Wholesale availability directly from the source manufacturers.
Comprehensive Specifications: Wide range of customizable specifications.
Professional Customization: Tailored solutions to meet specific requirements.
Stable Quality: Consistent and reliable performance.
Intimate After-Sales: Comprehensive after-sales support for peace of mind.

Key Features

High Accuracy: Achieves ±1.5% full-scale (F.S) accuracy for precise flow measurements.
Repetitiveness: Ensures a repeatability of 0.25%, providing consistent results.
Wide Flow Range: Available in multiple maximum flow specifications (20, 30, 40, 50, 80, 100, 150, 200, 300 SLPM).
Fast Response Time: Default response time of 67 ms, customizable for specific applications.
High Pressure Handling: Can handle pressures up to 0.5 MPa (customizable to 0.8 MPa).
Versatile Communication: Supports RS485 (MODBUS) communication mode.
Multiple Output Methods: Provides analog outputs of 1-5 VDC and 4-20 mA.
Display Mode: Displays instantaneous flow in SLPM and cumulative flow in SL.
Wide Operating Conditions: Operates reliably from -25°C to 85°C, with medium temperatures from -10°C to 65°C.
High Humidity Tolerance: Operates in working humidity up to <100% RH (no ice, no condensation).
Compact and Lightweight: Weighs only 0.215 kg.
Robust Construction: Features an R3/8” interface, customizable for specific needs.

Product Description

The CMF9000 Series digital type gas mass flowmeters are designed for precise measurement and control of gas flows. With a nominal diameter of 8 mm, these flowmeters can handle a wide range of maximum flow specifications from 20 to 300 SLPM. They are built using microelectromechanical system (MEMS) flow sensing technology, which ensures high sensitivity, reliability, and stability. The unique packaging technology enhances performance and cost-effectiveness.

The flowmeters are equipped with a high-precision digital processing and calibration circuit (MCU) that includes an integrated Δ-ΣA/D converter. This ensures real-time signal collection, accurate flow measurement, and internal compensation algorithms, eliminating the need for external calibration. The friendly digital output communication mode makes integration and data retrieval straightforward.

Technical Parameters

Functional Items	CMF9000 Nominal nominal diameter (mm)8 Maximum flow specification selection (SLPM)20,30,40,50,80,100,150,200,300
Nominal Diameter	8 mm
Maximum Flow Specifications	20, 30, 40, 50, 80, 100, 150, 200,250, 300 SLPM
Power Supply Voltage	7~24VDC, 50mA (customizable)
Accuracy	±1.5% F.S
Repetitiveness	0.25%
Response Time	67 ms (customizable)
Maximum Pressure	0.5 MPa (customizable to 0.8 MPa)
Communication Mode	RS485 (MODBUS)
Output Method	Analog outputs 1-5 VDC, 4-20 mA
Display Mode	Instantaneous flow: SLPM; cumulative flow: SL
Temperature	Medium temperature: -10°C to 65°C; Ambient temperature: -25°C to 85°C
Working Humidity	<100% RH (no ice, no condensation)
Weight	0.215 kg
Interface	R3/8” (customizable)
Calibration Conditions	Air, 20°C, 101.325 kPa

Applications

Industrial
Medical
Petroleum
Gas
Chemical
Smelting
Food Processing
Instrumentation
Mechanical and Electrical Equipment

Differentiation

Quality Materials: The CMF9000 Nominal nominal diameter (mm)8 Maximum flow specification selection (SLPM)20,30,40,50,80,100,150,200,300 is crafted from high-quality materials to ensure durability and performance.
Trusted Quality: Professional-grade quality ensures reliable operation.
Direct Supply: Wholesale availability directly from the source manufacturers.
Comprehensive Specifications: Wide range of customizable specifications.
Professional Customization: Tailored solutions to meet specific requirements.
Stable Quality: Consistent and reliable performance.
Intimate After-Sales: Comprehensive after-sales support for peace of mind.

Packaging and Shipping

Our gas mass flowmeters are carefully packaged to ensure they arrive safely and in perfect condition. Each flowmeter is individually wrapped in protective material to prevent damage during transit. We use trusted carriers for shipping, offering a range of options including standard and expedited shipping. Additional fees may apply for expedited shipping and international orders. We are not responsible for customs fees or taxes incurred during shipping.

If you have any questions or concerns about packaging or shipping, please don't hesitate to contact us.

Thank you for choosing our gas mass flowmeters.
