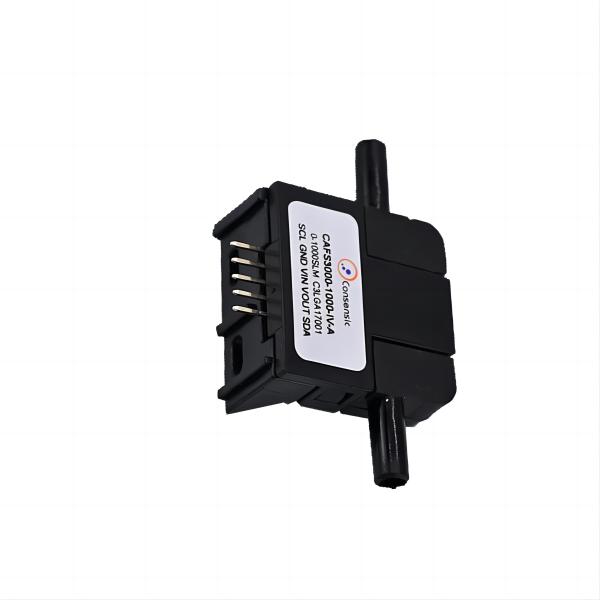

Name: CAFS3000 1ms Response Time Flowmeter High Accuracy
Brand: Consensic
Price: 1 USD

Ask Lasest Price
Brand Name :	Consensic
Model Number :	CAFS3000
Certification :	PTC22072602101C-CN01
Price :	Offline conversation or face-to-face discussion
Payment Terms :	L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability :	999
Delivery Time :	3-7 work days

Add to Cart

Parameter	Min Value	Typical Value	Max Value	Unit	Remarks
Flow Range	0	—	2000	sccm	Customizable
Service Voltage	8	12	24	V
Current	15	20	—	mA
Maximum Voltage Output	4.94	5	5.02	V
Zero Point Voltage Output	0.98	1	1.02	V
Accuracy	1.5	—	2	%FS
Withstand Voltage	0.3	—	0.5	MPa	Customizable
Resolution Ratio	0.1	—	—	%	Gamut
Response Time	20	—	30	ms
Zero Drift	—	0.2	—	%/Year	Gamut
Temperature Drift	—	—	4	%	0°C - 50°C
Overall Material	Silicon carbide, epoxy resin, PS, FR4, silicon as sealing material	—	—

Product

￭ Oxygen generator ￭ Antigas mask and respirator ￭ sprayer ￭ Continuous positive airway pressure ventilation (CPAP) equipment

￭ Delivery of anesthesia ￭ leak detection ￭ spectrometer ￭ mass flow controller ￭ communication system ￭ environmental climate control
