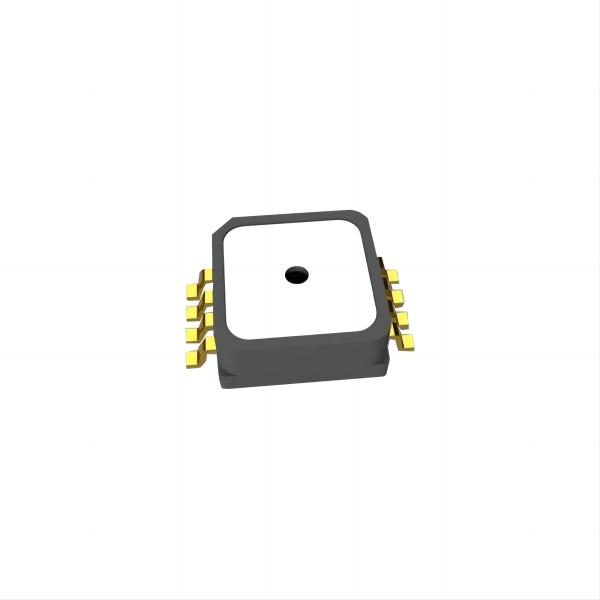

CPA900 Pressure Transducer Digital Output 4.5-5.5V DC 30-300kPa

Product Categories

Wuxi Consensic Electronic Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: CPA900 Pressure Transducer Digital Output 4555V DC 30300kPa
Brand: Consensic
Price: 1 USD

Ask Lasest Price
Brand Name :	Consensic
Model Number :	CPA900
Price :	Offline contact or face-to-face discussion can be negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram/Alipay/business-to-business
Supply Ability :	1000pcs
Delivery Time :	3-7 work days

Add to Cart

Parameter	Sign	Minimum	Representative Value	Maximum	Unit
VDDHV Voltage	VDDHV	4.5	5.0	5.5	Vdc
Working Pressure	P amb	30		300	kPa
Working Temperature	T opr	-40		125	℃

Parameter	Sign	Minimum	Maximum	Unit	Remarks
VDDHV Voltage	VDDHV	-24	28	V	At 70℃ / 1 hour
		-30	36	V	At 70℃ / 1 min
Analog Pin Voltage	VOUT	-0.3	5.3	V	25℃ , VDDHV > 5V
Simulation of Pin Currents			25	mA
Overload Pressure	P proof	400		kPa
Bursting Pressure of Tank Shell	P burst	500		kPa
ESD	HBM	±2		kV
	CDM	±500		V
Storage Temperature	T stg	-40	150	℃

Parameter	Sign	Minimum	Representative Value	Maximum	Unit	Remarks
Output Voltage Range	VOUT	0.01		4.91	V
Output Pressure Accuracy	A ccp	-1%		1%	%F.S.	@0℃~85℃
		-1.5%		1.5%	%F.S.	@-40℃~125℃
Electric Reset	VDDHV por		2.5		V
Typical Working Current	I avdd		3.1		mA
Voltage Output Noise	V rms		0.5		mV
Output to Drive the Load Resistance	R load	1			kOhm
Output Drive Load Capacitor	C load			150	nF
Short Circuit Current Limit	I short _lmt	10		25	mA	Output is short-circuit to either VDDHV or GND
Upper Limit Clamp Voltage	V clamph	0.01		2.5	V	@VDDHV = 5V
Lower Limit Clamp Voltage	V clampl	2.5		4.91	V	@VDDHV = 5V
Pinch Voltage Error	Δ V clamp	-40		40	mV	@VDDHV = 5V
Power Time	T UP		10		ms
Step Response Time	T RESP			0.8	ms
EEPROM Data Maintenance	T live		10		years	@125℃
