Name: Stainless Steel Linear Transfer Digital Output Pressure Sensor Easy Use
Brand: Consensic
Price: 1 USD

Ask Lasest Price
Brand Name :	Consensic
Model Number :	CTS110
Price :	Offline contact or face-to-face discussion can be negotiated
Payment Terms :	L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability :	999
Delivery Time :	3-7 work days

Add to Cart

Linear transfer function example: 1. Range 0~1.6Mpa (table pressure), 4 ~ 20 mA current output linear function is as follows:Aout =(400+P)/100

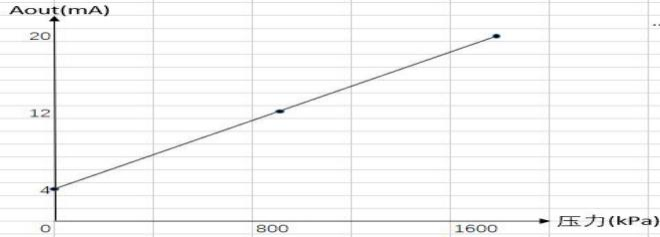

The linear diagram of the input pressure and the current output is as follows: linear transfer function.

Linear transfer function example: 1. Range 0~1.6Mpa (table pressure), 4 ~ 20 mA current output linear function is as follows:Aout =(400+P)/100

The linear diagram of the input pressure and the current output is as follows:

2. Range 0~1.6Mpa (meter pressure), the linear function of 0.5V~4.5V voltage output is as follows:Vout =(200+P)/400

The linear diagram of input pressure and voltage output is as follows:

output form

With shielded cable / GX 12 cable

Electrical connection

Current output, with a second-line system of 4~20mA

Pin 1 (Red Line) -Power Supply Positive Vs + Pin 2 (Black Line) -Power Supply Negative Vs-

Voltage output, three-wire

Pin 1 (red line) - -Power Supply Positive Vs +

Pin 2 (black line) -Power Negative / Common GND

Pin 3 (yellow line) - -Voltage output terminal Vout
