Brand Name : | Consensic |
Model Number : | CMF5025 |
Certification : | |
Price : | Offline contact or face-to-face discussion can be negotiated |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram/Alipay/business-to-business |
Supply Ability : | 1000 |
Delivery Time : | 3-7 work days |
Consensic, Inc. is an emerging U.S.-owned enterprise in the design,
manufacture and manufacture of MEMS. It was established by a
management team with extensive experience working in sensors and
semiconductors. Our commitment to continuous innovation and
market-competitive sensor manufacturing provides more options for
micro-miniature packaging for advanced integrated systems. By going
on and on
Technological innovation to provide customers with more MEMS
products with market competitiveness.
Wuxi Consensic Electronic Technology Co., Ltd. has the core
competence in MEMS design, manufacturing and testing, and can
provide customers with MEMS products and solutions with high
accuracy and high reliability. From silicon elements to tested
design quality and reliability, we strive to exceed our customers'
requirements. At the beginning of the company's establishment.
We are in close contact with our customers and collaborators, and
we create success together with the concept of win-win cooperation.
■ Industrial ■ medical ■ petroleum ■ instruments ■ gas ■ chemical ■ smelting ■ food processing ■ mechanical and electrical equipment

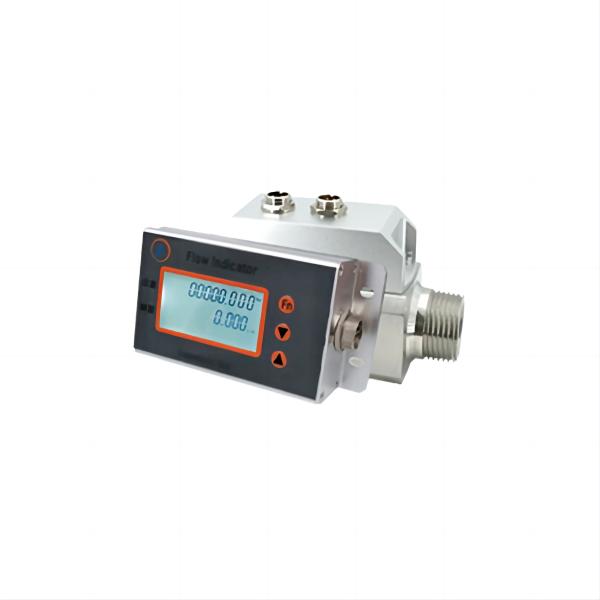

Functional items | CMF5025 Specifications Medical Flow Sensors 500 600 800 1000 1200 1600 L / Min | ||
performance parameter | unit | remarks | |
Power Supply Voltage | 8~24VDC ,50mA | VDC | selectable |
accuracy | ±1.5 | % | FS |
response time | 65 | ms | selectable |
maximum pressure | 0.8 | MPa | customizable |
communication mode | RS 485(MODBUS ) | ||
Output method | Analog outputs of 1-5 | VDC | |
4-20mA | apolegamy | ||
temperature | Medium temperature (-10~65), ambient temperature (-25~85) | ℃ | |
joggle | G1 | customizable | |
Calibration method | Air, and the 20℃,101.325kPa | ||
The overall material | stainless steel |
![]() |
