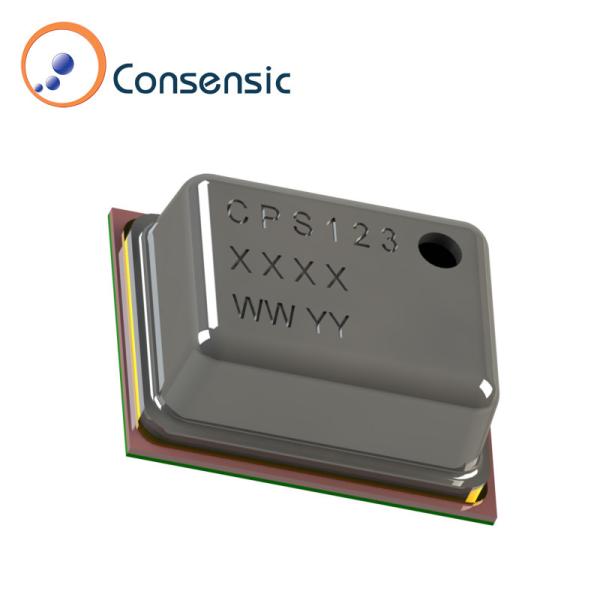

Digital Output Pressure Sensor CPS123 Working Temperature Range - 40 ° C To+85 ° C Pressure Accuracy < ± 0. 2kPa (<±2.0mbar) @ 25°C

Here is a more differentiated and concise description of the CPS123's key features and specifications:

Electrical Parameters:

• Average Supply Current (Iavg): 3.95 µA (at VDD = 3V)
• Supply Current During Conversion (Isc): 1.5 mA (at VDD = 3V)
• Standby Supply Current (Iss): 0.2 µA (at VDD = 3V)
• Analog to Digital Converter (ADC): 24-bit resolution
• I2C Clock Frequency (FC,I2C): 400 kHz

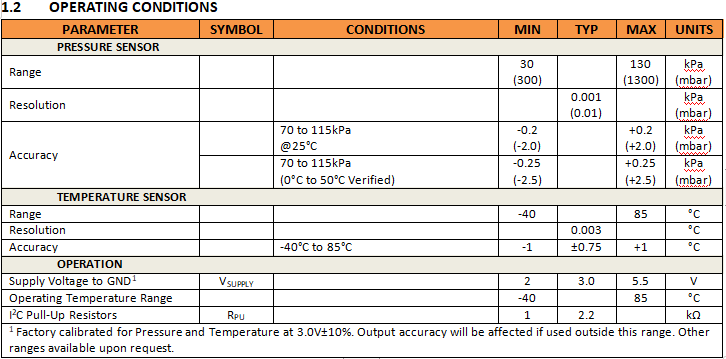

Operating Conditions:

Pressure Sensor:

• Range: 30 to 130 kPa (300 to 1300 mbar)
• Resolution: 0.001 kPa (0.01 mbar)
• Accuracy:
  • 70 to 115 kPa @ 0°C to 50°C: ±0.25 kPa (±2.5 mbar)
  • 70 to 115 kPa @ 25°C: ±0.2 kPa (±2.0 mbar)

Temperature Sensor:

• Range: -40°C to +85°C
• Resolution: 0.003°C
• Accuracy: ±0.75°C from -40°C to +85°C

Operation:

• Supply Voltage: 2.0V to 5.5V (factory calibrated at 3.0V ±10% for accuracy)
• Operating Temperature Range: -40°C to +85°C
• I2C Pull-Up Resistors: 1 to 2.2 kΩ

Absolute Ratings:

• Over Pressure: Up to 2 times Full Scale (FS)
• Supply Voltage: -0.3V to 6.5V (relative to GND)
• Analog/Digital I/O Pin Voltages: -0.3V to VDD + 0.3V
• Storage Temperature: -60°C to +150°C

Overview:

The CPS123 is an advanced System-in-a-Package (SIP) solution that integrates a resistive bridge pressure sensor and a 24-bit ADC. It delivers high-resolution and precise pressure measurements with fully calibrated, pressure- and temperature-compensated digital outputs. This eliminates the need for complex compensation calculations by the host microcontroller, making it highly efficient for a variety of applications.
